For over 30 years, Parkes Hydraulic Services Pty Ltd has provided both International & National comprehensive fluid power services, including the design, development, manufacture, sales and servicing of fluid power equipment, products and systems.

A black and white drawing of a gear with a hole in the middle.
Engineering and Manufacturing

We are proud to offer custom design and manufacturing services for our clients. Our team manufactures Hydraulic Cylinders and Large bore hose assemblies as well as custom-made certified machinery to fit our customers' needs.

A black and white drawing of a wrench and screwdriver on a white background.
Servicing and Repairing

Our service technicians are certified, trained and ready to repair any issues with motors, pumps, valves and other hydraulic accessories. All repairs are tested and data recorded on our Test Rigs, all repair are performed in house in our Air Conditioned Test Room. On site repairs can be arranged and are limited to work load.

400-4 Cable King MK VI

Quick Hitch Reeler Reclaimer

The 400-4 MK VI Cable King Quick Hitch Reeler Reclaimer is our latest released machine.  It is designed as a quick hitch attachment for the reclamation and distribution of electrical cable and can be alternately ordered to suit all Integrated Tool Carriers, Front End Loaders, Tele Handlers & Fork Lift machines.


400-4 MK VI Calculations and Engineered design state the purpose of use and is not to be used for any alternate use other than reclaiming and laying electrical cable.


The 400-4 MK VI is a hydraulic powered attachment secured in position with a quick hitch arrangement which means connection to the applied loader is fast with connection to the two axillary hydraulic lines, correct hydraulic application should be understood for trouble free operation.


We have four (4) options available for consideration all base models are available to be adapted into the 400-4 MK VI base frame.

  • Option 1 – Base Model - Quick Change Axle

    Base Model – supplied with quick change axle this allows wooden drums to be used to reclaim used electrical cable for storage purpose, the loaded drum can be quickly removed from the reeler reclaimer, spare empty drums can be quickly installed to continue reclaiming - Transport of loaded drums in this mode of operation is not recommended.

  • Option 2 – Heavy Duty Certified Drum # CK15080-D1

    Cable bend radius 400mm


    Maximum Load Axle & Drum Assembly 2400kg With Load Factor of 5.


    A Fixed Axle Certified Drum is supplied with the Quick Change Axle option as standard. The Reeler Reclaimer can be used to Transport, reclaim cable from a lay-down area or directly recovered after removal from a previous location, transported and relayed in a new location, this greatly reduces the purchase cost of new cable. Using the certified drum also allows cable to be installed vertically down or reclaimed vertically up when the cable weight in itself is to the weights calculated in the Engineering Certificates supplied with the 400-4 MK VI Manual. No consideration has been allowed for any other purpose other than the cable weight itself.

  • Option 3 – Heavy Duty Certified Drum # CK15080-D2

    Cable bend radius 600mm


    Maximum Load Axle & Drum Assembly 1140kg With Load Factor of 5.


    A Fixed Axle Certified Drum is supplied with the Quick Change Axle option as standard. The Reeler Reclaimer can be used to Transport, reclaim cable from a lay-down area or directly recovered after removal from a previous location, transported and relayed in a new location, this greatly reduces the purchase cost of new cable. Using the certified drum also allows cable to be installed vertically down or reclaimed vertically up when the cable weight in itself is to the weights calculated in the Engineering Certificates supplied with the 400-4 MK VI Manual. No consideration has been allowed for any other purpose other than the cable weight itself.

  • Option 4 – Free Wheeling Drum # FW15080

    Cable bend radius 400mm


    Maximum Load Axle & Drum Assembly 1350kg With Load Factor of 5.


    The 400-4 MK VI is also available with the option of a Certified Free Wheeling drum – This option allows the drum to work in the locked position as a fixed drum or can be disengaged to freewheel. The freewheeling drum can be used to transport, reclaim cable from a laydown area or directly recovered after removal from a previous location transported and relayed in a new location, this greatly reduces the purchase cost of new cable. Using the certified drum also allows cable to be installed vertically down or reclaimed vertically up when the cable weight in itself is to the weights calculated in the Engineering Certificates supplied with the 400-4 MK VI Manual. No consideration has been allowed for any other purpose other than the cable weight itself.


    In all of the above working conditions it is important to operate the loader at the lowest engine R.P.M. this will reduce the heat generation in the hydraulic system and allow ground speed from loader to be manageable with reeling speed.


    Relative to late model tool handlers with closed centre load sensed circuits Service Bulletin Issue 003 should be observed and the relative adjustments completed by competent and skilled Trades Person.

Note:  The construction of the frame with the fixed drum allows transportation of loaded drums at speeds higher than operation speed over rough surfaces.  Regular inspections are required and Important Points for Operation and safety should be observed.


Loader Manufacturers bucket weights should be considered to determine the total weight of cable to be carried when operating the 400-4  MK VI Cable King Quick Hitch Reeler Reclaimer.


NOTE - THIS ATTACHMENT IS NOT DESIGNED

TO BE USED AS A WINCH OR HOIST.

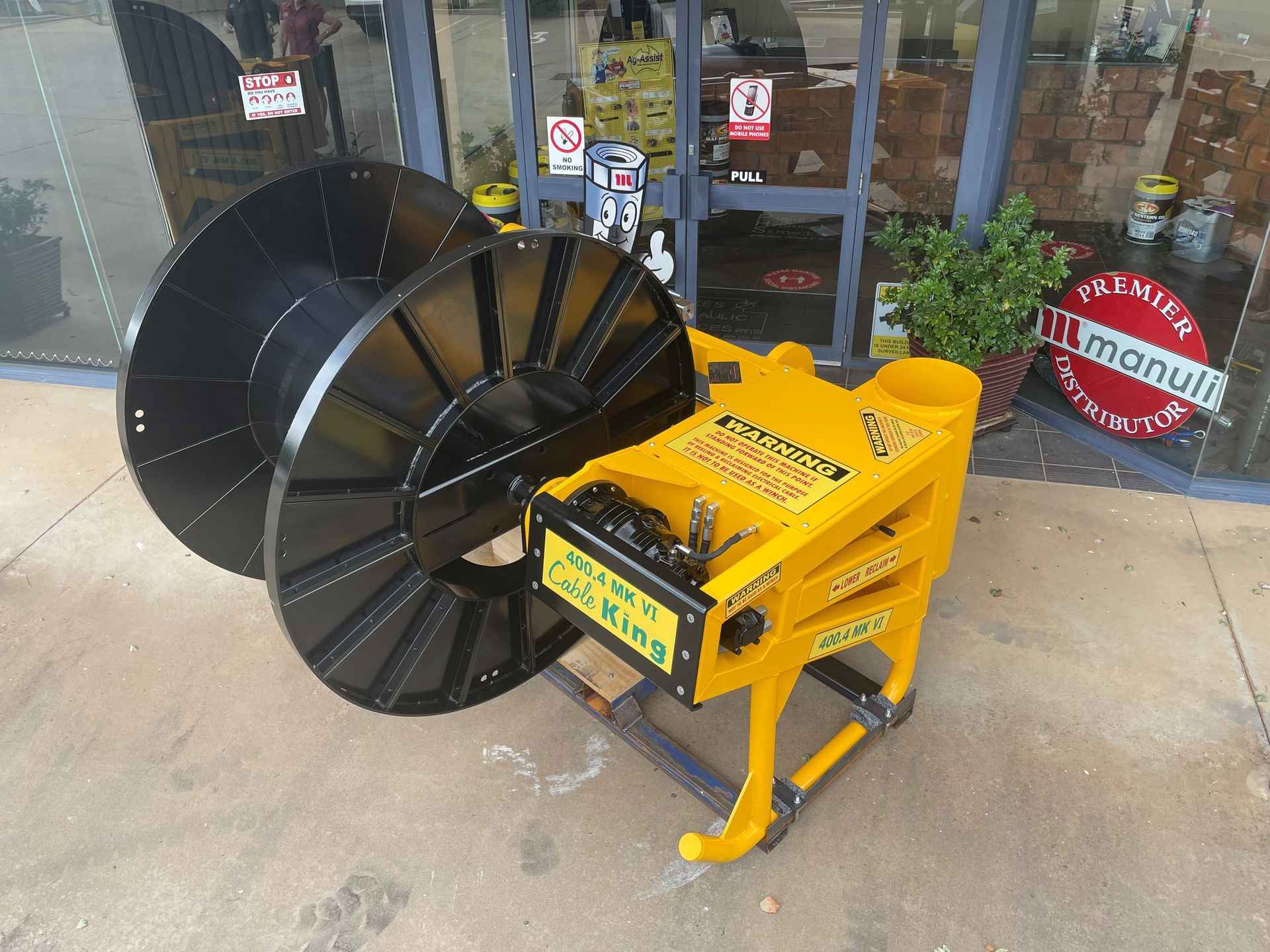

A yellow and black machine is sitting in front of a store

SPECIFICATIONS

  • Tare Weight 1300 KG
  • Gross Mass 5000 KG
  • Dimensions 2400 x 1200 x 960mm (Length-Width-Height)
  • Material  Frame  125 x 75 x 6mm RHS
  • Legs    40mm Thick Mild Steel 250 Grade
  • Drum RPM. = Variable  1 - 6 RPM Adjustable
  • Loader Operating RPM   650 – 1000 RPM
  • Safe Working Load of 4 Tonne Certified – Check Manufacturers Specifications
  • Accepted Wooden Drum Size Up To 1200MM Wide x 1600mm Diameter With Detachable/Quick Change Axle Option
  • Metal Certified Drum Options Available for Lowering & Raising Cable
  • Minimum Drum Hole Diameter 80mm (3”)
  • Forward or Reverse Capability
  • 2 Stage reduction 28:1   1000Da Nm Torque
  • Static Brake Torque 41:45 Da Nm
  • Gearbox Oil Capacity  3.2 Litres
  • Gear Oil  Alpha SP150
  • Gearbox Mass KG 100
  • Cable Size Up to 120mm²
  • Maximum Oil Flow to Reeler 45 Lt/Min
  • Maximum Pressure 140 Bar

Our Past Projects

Our highly knowledgable team can support your ideas every step of the way

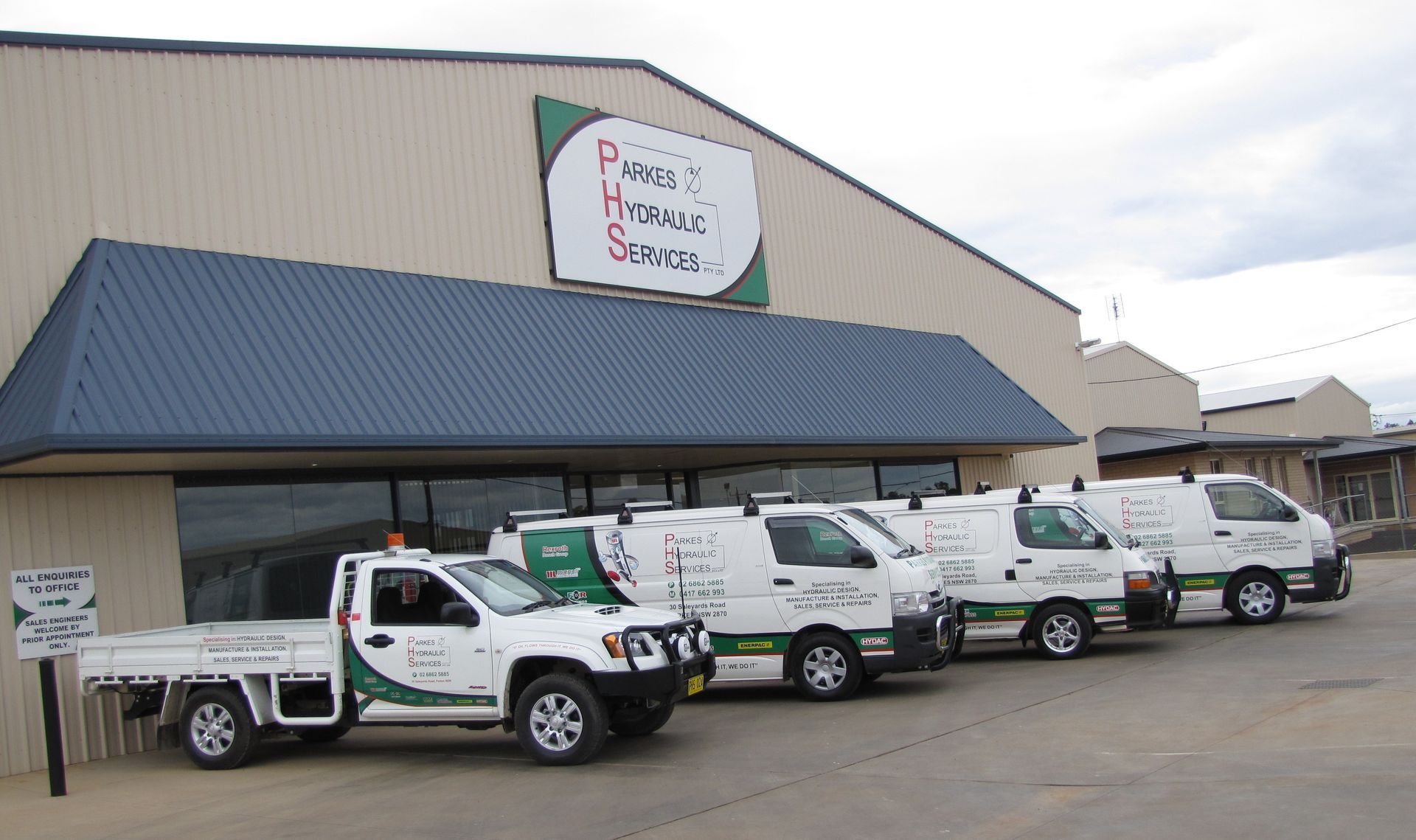

A row of trucks parked in front of a building

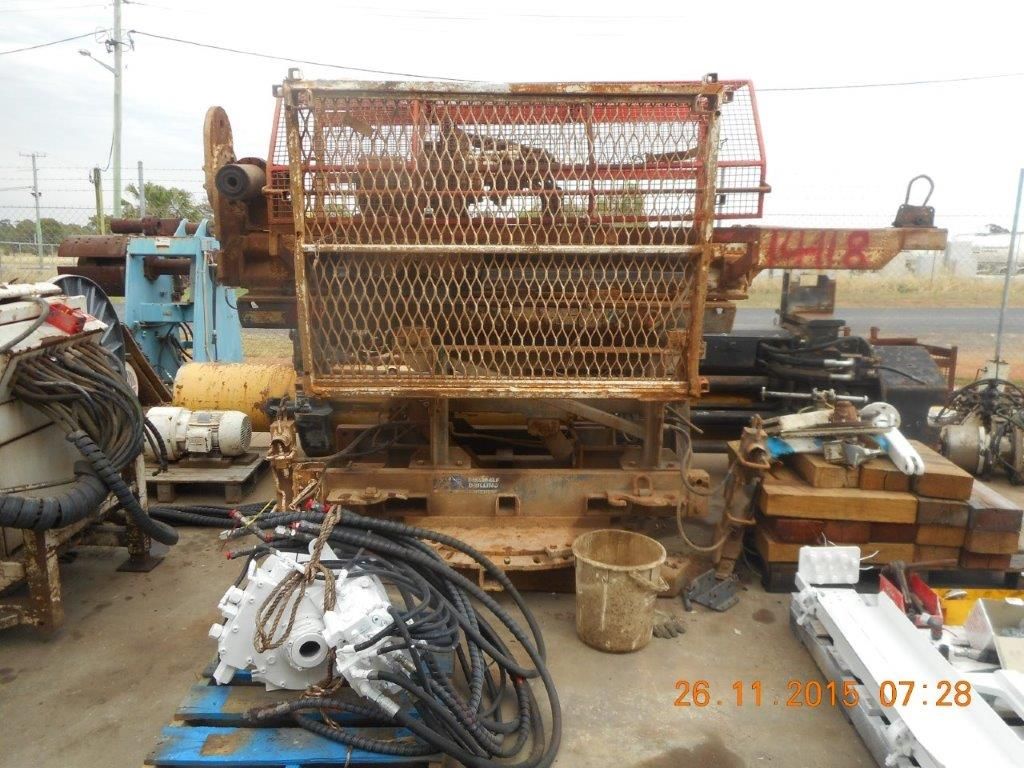

A bunch of machinery is sitting on the ground in a parking lot.

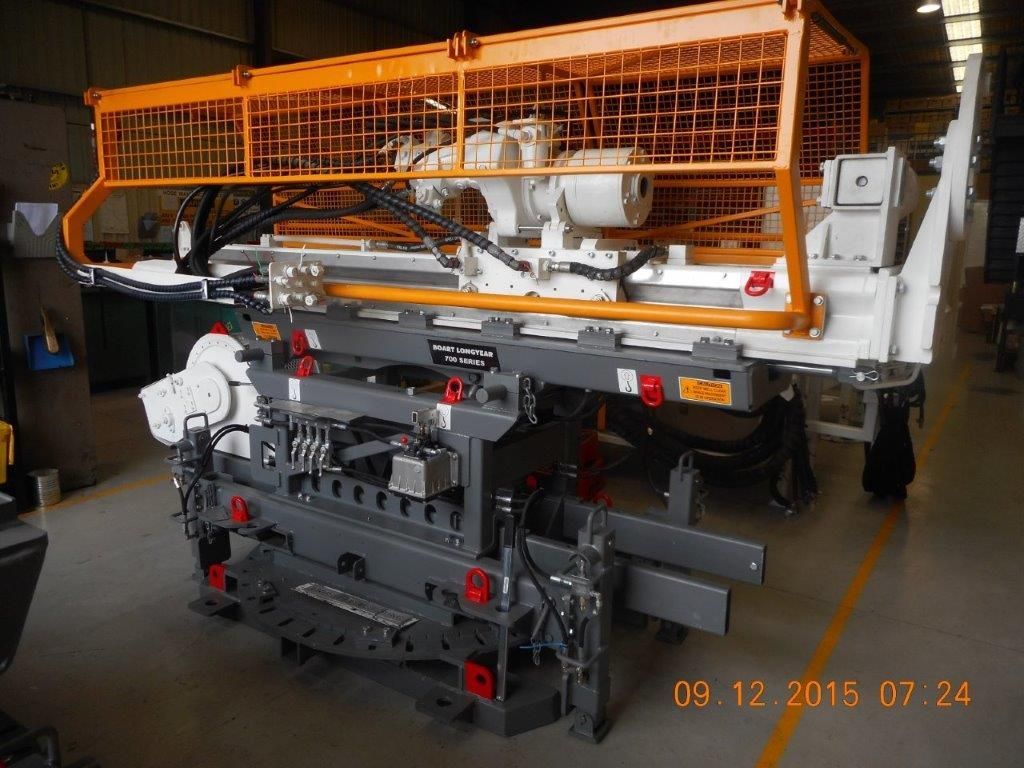

A machine is sitting in a warehouse with a photo taken on 03 12 2015 07:24

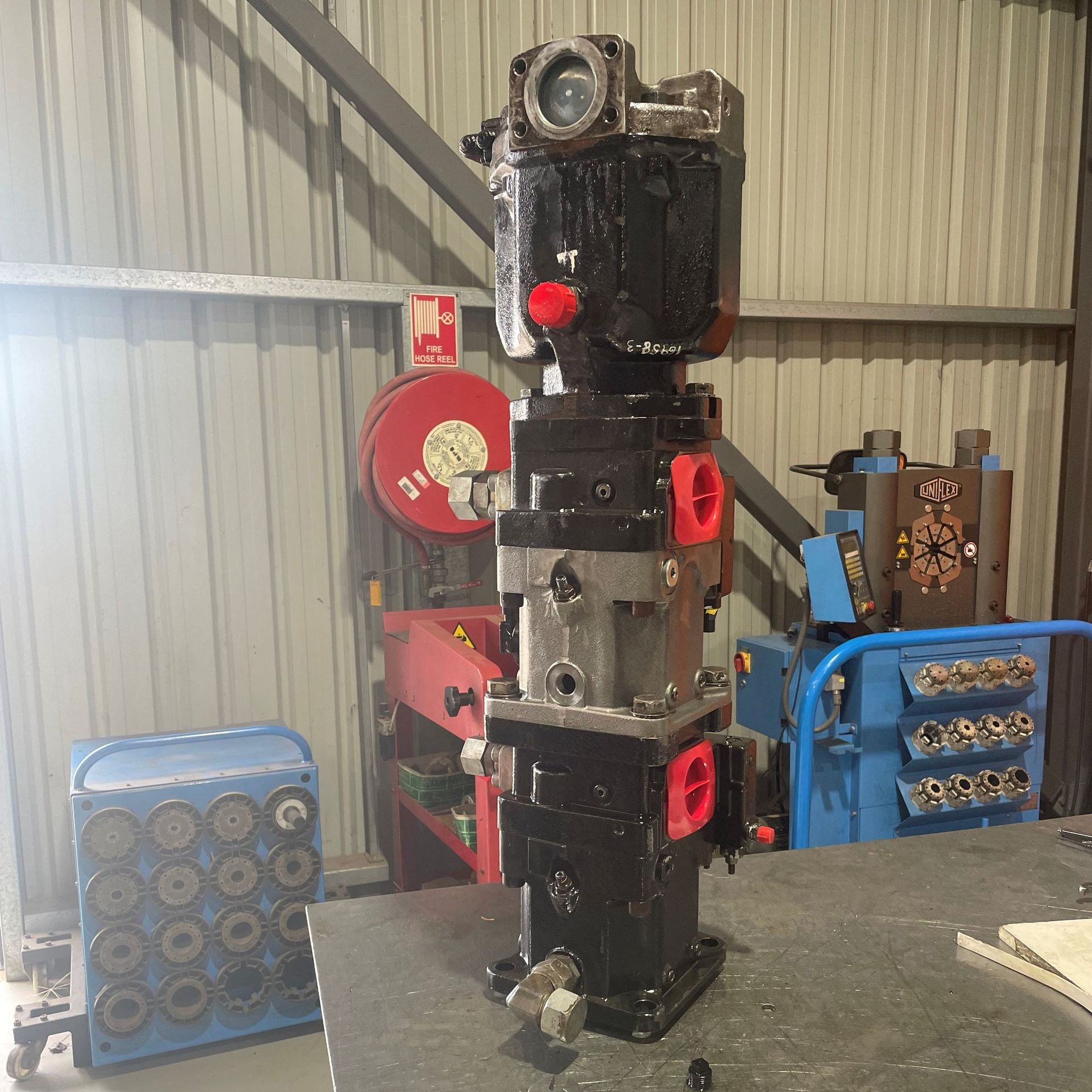

A machine with the number 8 on it
View More
A pair of black commas on a white background.
  • A white background with a few lines on it

    "The team at Professional Hydraulics Solutions..."


    Fred S.

    Button
  • A white background with a few lines on it

    "My experience with the team at..."


    Jessica M.

    Button
  • A white background with a few lines on it

    "I have nothing but great things to say about the team..."


    Sam P.

    Button

FAQs

  • What do you specialise in?

    Parkes Hydraulic Services specialises in the Design & Manufacture of equipment to suit our customers requirements. Our trained & qualified staff will be delighted to assist you with any hydraulic repair and manufacture. Remember "If Oil Flows Through It, We Do It"!

  • Can you repair Rams/ Cylinders?

    Parkes Hydraulic Services is a fully equipped cylinder repair centre! Our workshop has the ability to: *Custom Design & manufacture* Hone * Machine * Weld * Supply Seals All repairs performed in our workshop are fully tested before leaving!

  • Replacement Motors/ Pumps

    Pumps and motors are the heart of a hydraulic system – We have the hydraulic engineering expertise to offer a replacement, repair or new unit.  OEM special builds may be available on request.
